2 MP 1/2.8" CMOS görüntü sensörü, düşük ışıkta yüksek çözünürlüklü görüntü sağlar.
Maksimum 2 MP (1920 × 1080) çözünürlükte @25/30 fps çıkış yapar.
H.265 codec, yüksek sıkıştırma oranı, ultra-düşük bit hızı.
Dahili IR LED ve maksimum aydınlatma mesafesi 30 m.
SMART H.264 +/H.265+, esnek kodlama, çeşitli bant genişlikleri ve depolama ortamlarına uygundur.
DWDR, 3D NR, BLC, dijital su işaretleme, çeşitli gözetim sahnelerine uygun.
Anormallik tespiti: Hareket algılama, video manipülasyonu, ses algılama, SD kart yok, SD kart dolu, SD kart hatası, ağ bağlantı kesintisi, IP çakışması, izinsiz erişim.
Dahili çift antenli 2.4G Wi-Fi, açık alanda 150 m'ye kadar kapsama sağlar.
Maksimum 256 GB Micro SD kart desteği. Dahili mikrofon ve hoparlör bulunur.
12 VDC güç kaynağı.
IP67 koruma.

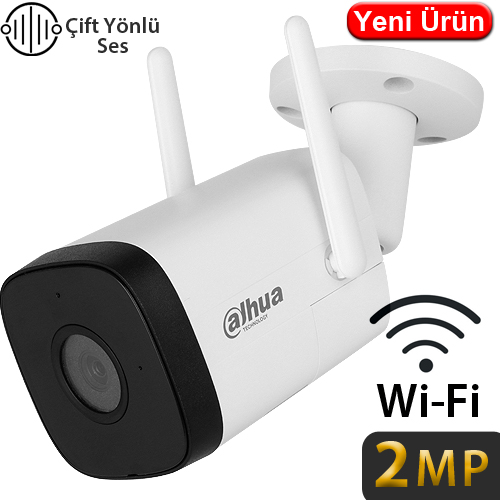

2 MP IR Fixed-focal WiFi Bullet Network Camera
> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.
> Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 150 m in an open area.
> Supports max.256 G Micro SD card.Built-in MIC and speaker.
> 12 VDC power supply.
> IP67 protection.
Camera
Image Sensor
1/2.8" CMOS
Max. Resolution
1920 (H) × 1080 (V)
ROM
16 MB
RAM
64 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.025 lux@F2.0 (Color, 30 IRE)
0.0025 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
> 56 dB
Illumination Distance
30 m (98.43 ft)
Illuminator On/Off Control
Auto; Manual
Illuminator Number
1 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F2.0
Field of View
2.8 mm: Horizontal: 100°; Vertical: 53°; Diagonal: 120° 3.6 mm: Horizontal: 86°; Vertical: 43°; Diagonal: 102°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.0 m (3.28 ft)
DORI Distance
Detect
Observe
Recognize
Identify
2.8mm
46.9 m
(153.87 ft)
18.8 m
(61.68 ft)
9.4 m
(30.84 ft)
4.7 m
(15.42 ft)
3.6mm
58.8 m (192.91 ft)
23.5 m
(77.10 ft)
11.8 m
( 38.71 ft)
5.9 m
(19.36 ft)
Video
Video Compression
H.264B; H.264; H.264H; H.265
Smart Codec
Smart H.265+; Smart H.264+
Video Frame Rate
Main stream: 1920 × 1080 (1–25/30 fps) Sub stream:
640 × 480@(1–25 fps)
640 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
2 streams
Resolution
1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)
Bit Rate Control
CBR/VBR
Video Bit Rate
H264: 24 kbps–4096 kbps
H265: 9 kbps–4096 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
WDR
DWDR
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
1024 kbps (1080p)
Smart Illumination
Image Rotation
0°/180°
Mirror
Audio
Built-in MIC
Built-in Speaker
Audio Compression
G.711a; G.711Mu
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change
Network
Network Port
RJ-45 (10/100 Base-T)
Wi-Fi
IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G
Wireless Range
Up to 150 m (The performance varies based on
actual environment)
SDK and API
Cyber Security
Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol
IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
Interoperability
ONVIF (Profile S/Profile T); CGI; P2P
User/Host
6 (Total bandwidth: 36 M)
Storage
Micro SD card (support max. 256 GB)
Browser
IE Chrome Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
iOS; Android
Certification
Certifications
CE-LVD:EN62368-1;
CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED:Radio Equipment Directive 2014/53/EU;
FCC:47 CFR FCC Part 15, Subpart B;
FCC ID:FCC PART 15C
Power
Power Supply
12 VDC
Power Consumption
Basic: 2.2 W (12 VDC)
Max. (H.265+IR intensity):6.21 W (12 VDC)
Environment
Operating Temperature
–30 °C to +50 °C (–22 °F to +122 °F)
Operating Humidity
≤ 95%
Storage Temperature
–40 °C to +60 °C ( –40 °F to +140 °F)
Protection
IP67
Structure
Casing
Front cover: Plastic
Rear: Plastic
Bracket: Metal
Product Dimensions
180 mm × 83.3 mm × 114.8 mm (7.09" × 3.28" × 4.52")
Net Weight
350.1 g (0.77 lb)
Gross Weight
588.1 g (1.30 lb)
